PGroup Water Tank Reinforcing System

Reinforcing System

Reliable quality in strength and durability

PDGTANK – GRP Sectional Tanks basically adapt the internally reinforced system, which ensures the better reliability and robustness.

As an option, externally reinforced system which has no internal reinforcements also can be applied according to project’s requirement.

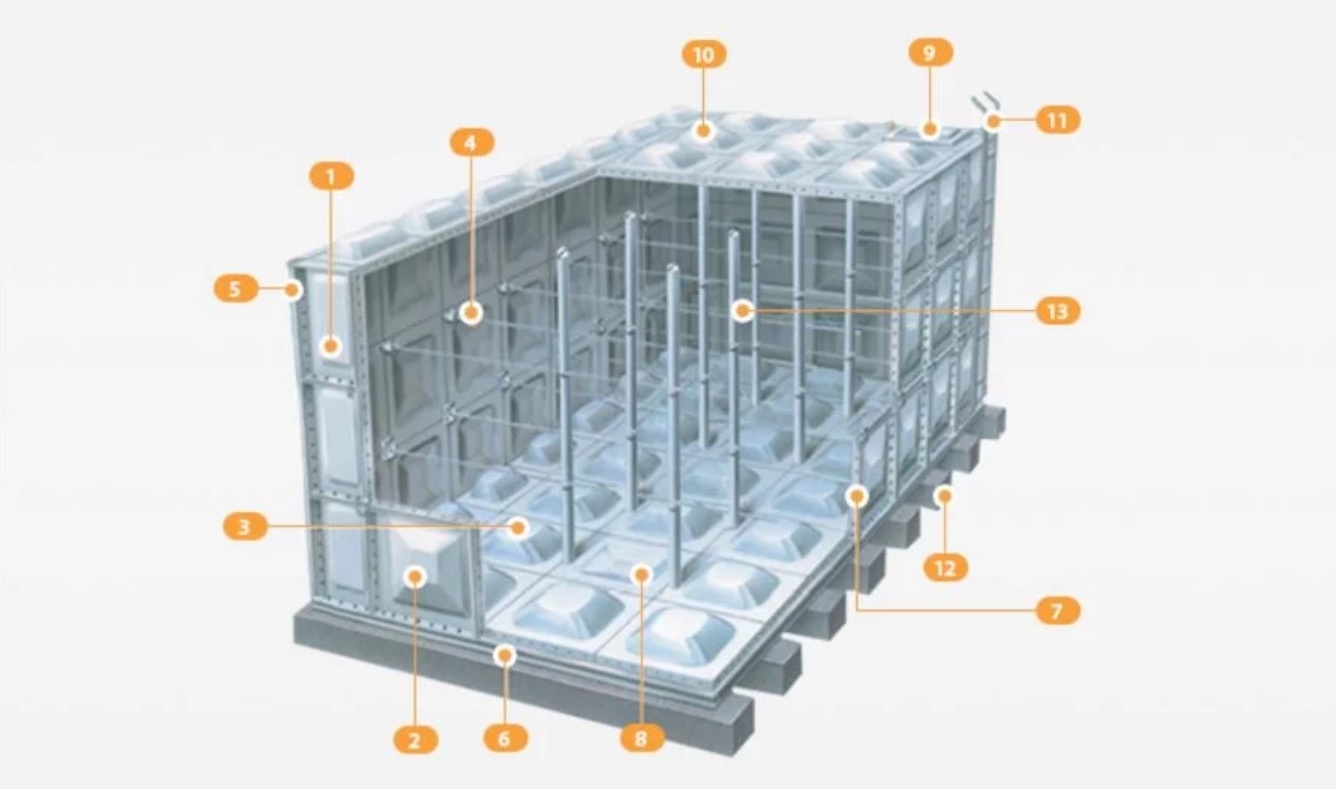

Internally Reinforced System

Wall panels are tightened using stainless steel tie-rods and the top panels are supported with GRP pipes inside of the tank to secure the strength and stability of the tank structure.

internally reinforced system
  1.   Wall – Hot press molded GRP panel (1000x500mm)
  2.   Wall – Hot press molded GRP panel (1000x1000mm)
  3.   Bottom – Hot press molded GRP panel – Convex (1000x1000mm)
  4.   Internal tie-rods – Stainless steel 304 or 316
  5.   Corner frame – Hot dipped galvanized steel
  6.   Base frame – Hot dipped galvanized steel
  7.  Assembly bolts in size M10 / 12 / 14

      Inside: Stainless steel 304 or 316

      Outside: Galvanized steel (with or without rubber cap)

  1.   Drain – Hot press molded GRP panel – Concave (1000x1000mm)
  2.   Dust proof manhole cover – Hot press molded GRP panel (Ø850)
  3. Top cover – Hot press molded GRP panel (1000x1000mm)
  4. External ladder – Hot dipped galvanized steel or stainless steel
  5. Foundation – Concrete plinth with interval of 1m span
  6. Roof support – Pultruded GRP pipe
internally reinforced system1

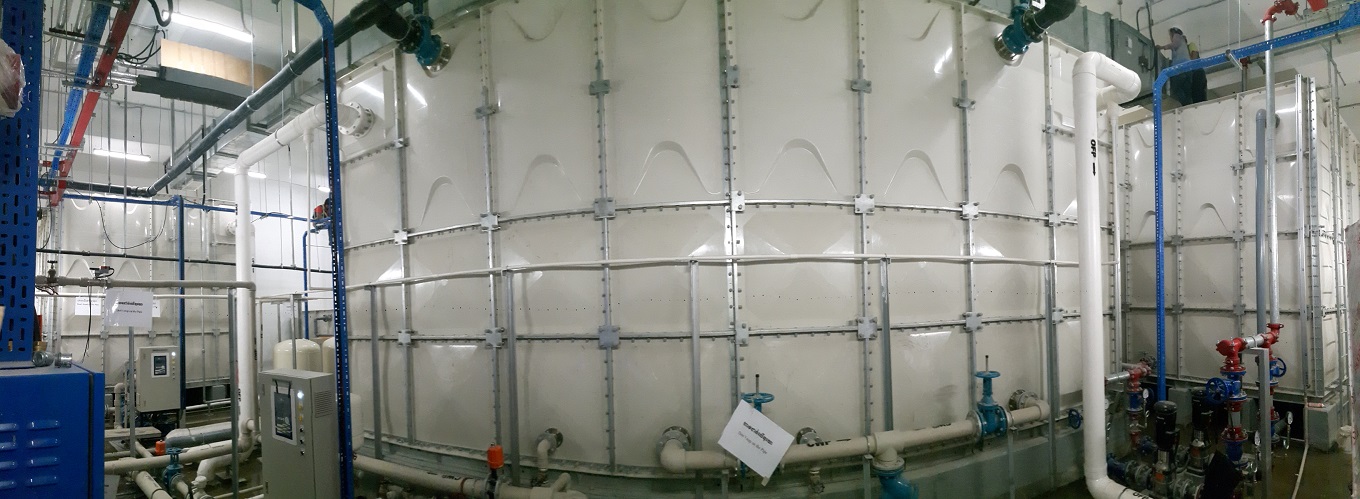

Externally Reinforced System

By client’s request, externally reinforced system with no internal tie-rods is available. This system allows easy access into the tank for cleaning and maintenance.

Mixed Reinforced System

For tanks over 4m height, internally and externally reinforced system is applied to assure the strength and durability of the tank’s structure. As the internal materials, hygienic stainless steel and GRP are used, and as the external materials, anti-corrosive hot dipped galvanized steel is used.
